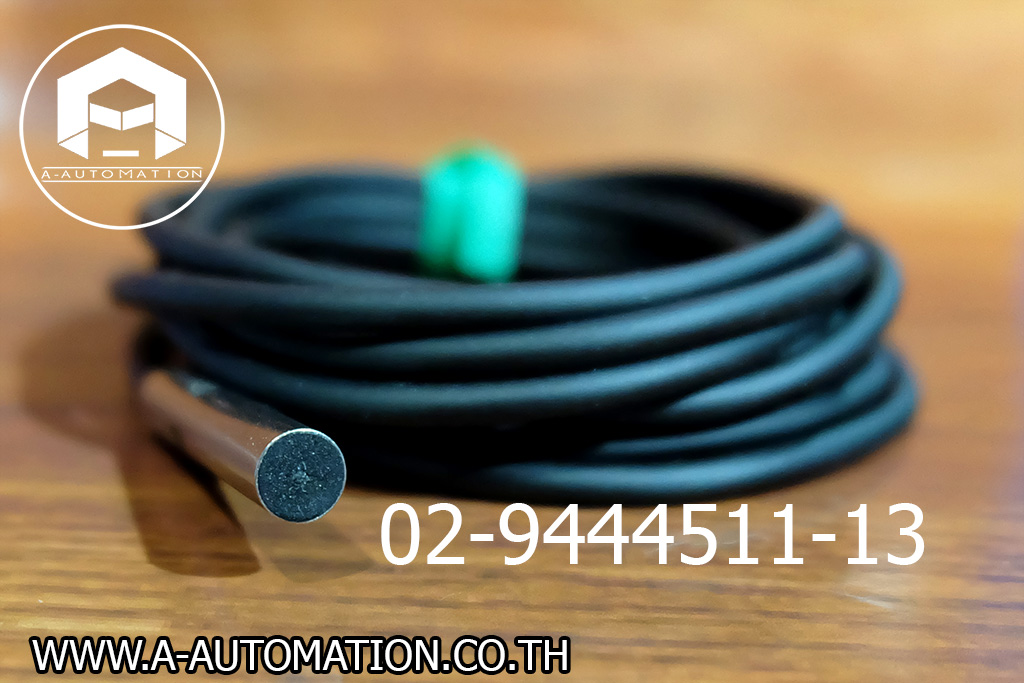

Inductive Proximity Sensor Sunx GX-5S

8 ปีที่ผ่านมา

โดย เจ้าของร้าน

Spec Detail

Inductive Proximity Sensor Sunx GX-5S

Item	Performance characteristics
Max. operation distance	1 mm 0.039 in plus or minus 15% (Note) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object.
Stable sensing range	0 to 0.8 mm 0 to 0.031 in (Note) The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation.
Standard sensing object	Iron sheet 6 x 6 x t 1 mm 0.236 x 0.236 x t 0.039 in
Hysteresis	15 % or less of operation distance (with standard sensing object)
Repeatability	8 microm 0.315 mil or less
Supply voltage	10 to 30 V DC Ripple P-P 10% or less
Current consumption	15 mA or less
Output	NPN open-collector transistor - Maximum sink current: 200 mA(Note) - Applied voltage: 30 V DC or less (between output and 0 V) - Residual voltage: 1.5 V or less (at 200 mA sink current), 0.4 V or less (at 50 mA sink current) (Note) The maximum sink current varies depending on the ambient temperature.
Output:Output operation	Normally open
Output:Short-circuit protection	Incorporated
Max. response frequency	1.5kHz
Operation indicator	Red LED (lights up when the output is ON)
Protection	IP67 (IEC)
Ambient temperature	-25 to + 70 degrees -13 to +158degrees Fahrenheit, Storage: -25 to +80 degrees -13 to +176degrees Fahrenheit
Ambient humidity	35 to 95 % RH, Storage: 35 to 95 % RH
Voltage withstandability	500 V AC for one min. between all supply terminals connected together and enclosure
Insulation resistance	50 MOhm, or more, with 500 V DC megger between all supply terminals connected together and enclosure
Vibration resistance	10 to 55 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each
Shock resistance	300 m/s2 acceleration (30 G approx.) in X, Y and Z directions for ten times each
Sensing range variation:Temperature characteristics	Over ambient temperature range -25 to+70 degrees -13 to +158degrees Fahrenheit: Within plus or minus15 % of sensing range at +20 degrees +68degrees Fahrenheit
Sensing range variation:Voltage characteristics	Within plus or minus2.5 % for plus or minus15 % fluctuation of the supply voltage
Material	Enclosure: Brass (Nickel plated), Resin part: ABS
Cable	0.14 mm2 3-core oil, heat and cold resistant cabtyre cable, 3 m 9.843 ft long
Cable extension	Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.
Net weight	Net weight: 55 g approx.
Accessories	MS-SS5 (Sensor mounting bracket): 1 pc.
